Objective Reviews & Commentary - An Engineer's Perspective

May 13, 2011

Virtual Grounds & 3 Channel Amps

nwavguy 3 channelINTRO: My AMB Mini3 headphone amp review immediately generated questions about virtual grounds. People wanted to know if they cause so many problems why use them and what’s a better option? And what about other 3 channel headphone amps? It turns out this is an interesting topic and worthy of some mythbusting.

GRAINS OF TRUTH: Not to start off on the wrong foot, but this sets the stage for what’s likely behind 3 channel amps. Audiophiles sometimes latch onto things with at least a grain of truth behind them only to apply the original truth in ways that don’t make any sense. Vibration damping is one of the more obvious examples.

PAINT SHAKERS: Please indulge me here…  Let’s take a quick detour and look at vibration damping. Vacuum tubes, and certain components in very high gain circuits like phono preamps, can be “microphonic”—vibrations can affect them in audible and measurable ways. This is the grain of truth. Audiophiles responded with various elaborate methods to reduce vibration—platforms, support cones, sand filled equipment racks, and even “sonic bricks” to set on top of your equipment. If it only applied to tube gear and phono preamps, that would be one thing, but what’s good for tubes must be good for everything, right? So vibration damping is widely marketed for, and applied to, solid state pre amps, power amps, DACs, receivers, etc. This is where the grain of truth becomes myth. The alleged benefits to mainstream gear never survive blind listening tests and defy detection by even the most sensitive measurements. The fact is, you could clamp a DAC into a running paint shaker and I doubt it would sound any different. In short, the supposed “benefits” are very likely imagined. It’s mostly a giant, but surprisingly popular, waste of money. And all this money is wasted because a “solution” is being applied where there isn’t a problem to begin with. But at least vibration damping is generally harmless. Virtual grounds generally result in worse performance.

SPLIT BIPOLAR DISORDER: No it’s not a mental diagnosis for Charlie Sheen. It’s what happens when most op amp circuits are paired with a single power supply. Op amps are a primary building block of audio circuits. And they work best with two power sources or “rails”—one positive and one negative—known as a “split” or “bipolar” supply. This allows their outputs to be referenced to zero volts making them easier to use and perform better.

WHY USE VIRTUAL GROUNDS? In a headphone amp the only arguably valid reason to use a virtual ground is when you can’t use a real one. The AMB Mini3, for example, runs from a single 9 volt battery and uses a virtual ground to divide 9 volts in half forming a 4.5 volt reference. The input and output are then referenced to 4.5 volts as if it were a zero volt ground. This electronic slight-of-hand tricks the op amp driving the headphones into thinking is has dual +/- 4.5 volt power supplies. So far so good.

virtual ground

A FAKE GROUND BY ANY OTHER NAME… There are many names for these slight-of-hand tricks such as:

  • Virtual Ground – This is the most generic term for any circuit or configuration that creates or synthesizes a ground. It could be just 2 passive resistors as shown in the diagram to the right. Here a single battery is divided by two resistors forming a midpoint that can be used as a virtual ground. This is done in many low cost, low power op amp circuits and can work reasonably well where the maximum currents are less than a few milliamps. The more current you need, the lower the resistor values have to be, and the more power is wasted as heat. It’s “good enough” for certain applications and widely used.
  • rail splitterRail Splitter – This is generally an active device designed to maintain a voltage at half the power supply voltage—splitting the “rails”. Just like the resistors, it creates a “mid point” forming a virtual ground for the rest of the circuit. It’s hopefully more power efficient and/or provides a more stable, lower impedance ground than resistors. The TI TLE2426 is an example of a simple commercial rail splitter IC designed for low power circuits. It will work up to about 20 mA which is great for most low level op amp circuits but still not enough to do a respectable job in a headphone amp—although some have tried and are promoting such designs.
  • Active Ground – The triangle in the second diagram can represent a buffer or amplifier such as the OPA690 op amp used in the Mini3. This allows more current capability than from a conventional rail splitter like the TLE2426. This is required for something like a headphone amplifier which require more than 20 mA.
  • 3 Channel Active Ground – When the virtual ground is similar or identical to the left and right amplifier channels it’s often called a 3 channel active ground. AMB uses this description to describe several of their amplifier designs such as the M3. Other examples are the Tangent Pimeta v2 and Triad Audio Lisa III. The newest so called 3 channel design is the FiiO E11.
  • dual groundMultiple-Grounds – This is where things get more confusing. The AMB Beta22 aka ß22 (B22) amplifier “recommended” configuration uses 3 channels. The B22 already has a dual split power supply and a real ground. So why create a virtual ground with a 3rd channel? Remember the audiophile vibration reduction from above applied under the wrong circumstances? This is essentially the same thing—a “solution” without a problem. The third diagram to the right shows the dual power supply with its real ground, and the virtual ground created from the split power supply rails.

WHY TWO GROUNDS? So if there’s already a real ground, why would anyone create a virtual ground? The following claim from the AMB website for their real ground B22 amp in 3 channel form is the typical justification:

“Offers improved performance by having an active ground channel amplifier for the headphone's shared "ground return" wire. The ground channel amplifier sources or sinks the return current from the transducers, which would otherwise have been dumped into signal ground or power supply ground. This shifts responsibility for the high current reactive load of the headphones from signal ground to the tightly regulated power supply rails, thus removing the primary source of signal ground contamination. The headphone transducer "sees" symmetrical output buffers with equal impedance and transfer characteristics on both sides, rather than an amplifier on one side and a capacitor bank of the power supply ground on the other. This results in lower output impedance, greater linearity and reduced stereo crosstalk.”

MYTH BUSTING: Most everything in the quote above is relatively accurate, if a bit misleading, until you get to the last (underlined) sentence where the benefits are stated. Let’s look at each of these mythical benefits in more detail:

  • MYTH: LOWER OUTPUT IMPEDANCE - Using an identical copy of the amplifier as a virtual ground doubles the output impedance. In a conventional two channel amplifier the ground terminal for the headphones (or speakers) would terminate at the central ground for the amplifier via a short length of wire or ground track on a PC board. Let’s say it’s 2 inches of 18 gauge wire. That’s 0.001 ohms or 1 milliohm (mOhm). A high quality headphone amplifier might have an output impedance of 50 mOhms—50 times higher. So the output impedance isn’t lowered, but doubled. See the diagram at the top of this page. Strike One!
  • MYTH: GREATER LINEARITY - This has the same problem as the output impedance above. Any amplifier has non-linearities especially compared to a 2 inch piece of wire. The virtual ground amp has to source and sink all the current from both loads and is going to generate distortion and non-linearities in doing so. The perfect amplifier does not exist. But a piece of wire is pretty close to perfect and offers much greater linearity. More on this later. Strike Two!
  • MYTH: REDUCED STEREO CROSSTALK - If we start with a properly designed amplifier, a shared virtual ground will always increase the crosstalk compared to a conventional star ground. Why? The higher output impedance of the virtual ground is shared between the channels—and it turns out this degrades the crosstalk by somewhere around 20 - 40 dB. More on this later as well. Strike Three!
  • MISLEADING: SYMMETRICAL IS BETTER – If you follow the current path in any device with 2 terminals, like a driver in a headphone, it doesn’t have a concept of “symmetrical”. Your flashlight doesn’t care which bulb terminal is hooked to the switch—it’s the total loop that matters. And, believe it or not, a headphone driver can’t tell if it has one side connected to ground or not. If symmetry was so important, why do so many of the best performing systems on the planet have their their drivers connected to ground? So while “symmetry” seems nice to a human, to an electron going through a headphone driver, it’s meaningless. If you don’t believe me, read up on Kirchhoff’s Laws.

3+ STRIKES AND YOU’RE… Busted. Or at least the myths are. But, if you need more evidence, please keep reading. And if you’re an engineer or serious geek, you’ll find more details in the Tech Section.

GROUND ISOLATION (added 5/15): Isolating the input ground by using a virtual ground only for the outputs does remove the load ground currents from the input ground system. But it also creates new problems. With a conventional star ground the common mode rejection of the audio amps can compensate for many imperfect things in an amplifier. But if you isolate the grounds, you remove the ability to compensate for ground impedance. Even in much larger power amps, with 100+ times greater ground currents, the ground currents are an entirely manageable problem. And, regardless, the many other side effects of using a shared virtual ground for the load cumulatively are far worse than any arguable ground problem in a properly designed conventional amp. Two grounds also have the potential to create other problems. See the Tech Section for more.

nwavguy 3 channelWHAT HAPPENED TO DUAL MONO? It’s interesting when audiophile beliefs directly conflict with one another. Many audiophiles believe the closer you get to a true “dual mono” signal path, the better the sound. The less that’s shared between the stereo channels, the less interaction there will be, the greater the stereo separation and purity of the sound. Unlike some audiophile mythology, this at least has some basis in fact. This is often carried to the extreme of “mono block” designs that are isolated right down to having a left and right power cord. With that in mind, have a look at the diagram. Note the amplifier in the middle, providing a very critical ground reference, is shared by the two channels. The roughly 100 mOhm output impedance is shared between the channels seriously degrading stereo separation and creating other problems. It’s the opposite of dual mono! So which audiophile belief should have higher priority? The one that has some rational basis in fact (dual mono) or the one that doesn’t (shared virtual ground channels)?

OVERWORKED AMPS: The problem is worse than just degraded separation. The shared ground amplifier has a hard job. It literally has to deal with twice as much current as the left and right amplifiers and more than twice as much power dissipation. More current means more non-linearities and distortion. And more dissipation means more heat. The OPA690 shared ground in the AMB Mini3, for example, can get seriously hot which degrades its performance and puts it in danger of failing sending potentially damaging DC to the headphones. If all three channels are the same, as they are in most of these designs, you either have to seriously over engineer the left and right channels so the same design can handle greatly increased demands of “ground duty”, or if the amps are optimized for normal headphone requirements, the ground amplifier is going to be overworked and seriously limit the performance of the left and right channels. Neither is a very attractive solution.

SHARED DISTORTION: Even when the ground amplifier is operated within its capabilities, its noise and distortion will contribute to both channels. All amplifiers have distortion, and in this case, none of it is likely to cancel out (in true balanced amps the even harmonics cancel to some degree). And, worse, a shared third channel creates entirely new kinds of inter-channel distortion that get added to both channels.

PLEASANT HARMONICS: Anyone who’s ever played around with a piano or keyboard knows some notes go well together (and form pleasant chords) and some create a much more painful effect. It turns out that also holds true for distortion products. If you play the note “A” in the 4th octave, that’s 440 hz. If you add another “A” in the 5th octave, that’s 880 hz and they go together and harmonize rather nicely because the 2nd note is exactly one octave higher than the first. The 2nd harmonic distortion product of 440 hz is, guess what, 880 hz. That’s why 2nd harmonic distortion is considered relatively benign—it blends in nicely. Odd order harmonics are less pleasant, but they’re still harmonically related to whatever is playing making it much more likely the brain will perceive them as part of the music.

NON-HARMONIC CONFLICT: In a normal two channel amp with a real ground, nearly all the distortion products—especially any audible ones—are confined to each channel and largely harmonically related to whatever is playing. But, if you share a nonlinear ground between the two channels, all that harmonic bliss goes out the window. Now you have distortion products in the right channel that are not related to what’s playing in that channel because they’re coming from the other channel which is playing something different. And visa versa. This type of distortion, created by the virtual ground, is considered far more audible than the usual harmonic variety. And the Mini3 has these distortion problems even at modest listening levels. See the Tech Section for more.

nwavguy 2 channel real groundDUAL MONO REVISITED: So, just for reference, the diagram at the right shows a conventional 2 channel grounded amp. It’s much closer to being a “dual mono” design sharing only a relatively insignificant 1 mOhm of common ground impedance. This conventional design has the potential to reduce shared everything (crosstalk, distortion, etc.) by around 40 dB which likely pushes all of it safely into inaudibility.

BRIDGED AMPS: It’s worth noting a bridged amp shares the same basic concept as active ground amps. Both route all the “return” currents to the power supply rails and you can run a bridged amp from a single supply. The bridged amp has the advantage of not sharing an amplifier between the channels so it can be a true dual mono design. But despite all these supposed advantages, bridged amps are generally regarded as inferior by audiophiles. Why? Likely because they have more non-linearities, higher distortion, perform poorly with low impedance or highly reactive loads, have generally inferior clipping behavior, and a higher output impedance. They also require nearly double the circuitry so you might pay more for less performance. Bridged amps are mostly only favored for very high power applications—like rock concerts—where ultimate sound quality is not the primary goal but their power supply benefits are substantial. This is the exact opposite of a headphone amplifier where you want very high quality but only need very low power.

BATTERY LIFE (added 5/15): In a battery powered device every milliwatt can matter. Unfortunately an active ground wastes a lot of energy as heat. All the current routed through the virtual ground generates considerable “V*I” losses. In the Mini3, for example, the virtual ground can waste a several hundred milliwatts above and beyond the quiescent power. Even with just one channel operating, the virtual ground will dissipate more heat than the output amplifier. That’s not good for battery life and helps explain why a much smaller amp like the FiiO E5, with a vastly smaller battery but similar levels of output power, can have longer battery life. And with the burden of both channels it can overheat and becomes the weak link in the entire amplifier.

COMMON SENSE: Active/virtual grounds are hardly a new idea. They’ve been used in op amp circuits for decades and Crown developed one for large power amps in the 70’s. If this 3 channel active ground topology really helped headphone amp performance, why is it so rare—especially among commercial products? High end audio manufactures are always looking for ways to differentiate and market their products. And none of the top audio amp designers (to my knowledge) including Bob Cordell, Douglas Self, John Curl, Walter Jung, and others, have done any 3 channel designs of any kind. I conducted multiple searches of the massive Audio Engineering Society publication library which includes some pretty obscure stuff and came up with nothing but crickets. Could this be another “sonic brick”?

BOTTOM LINE: I’m sure there are plenty who have 3 channel headphone amps and think they sound amazing. But I’ve heard that about Sonic Bricks sitting on DACs too. The real truth is a well designed 2 channel amp will always outperform a similar 3 channel or “virtual ground” amp when a true split power supply is available. If you’re genuinely stuck with a single power supply, then you have to pick the best compromise. In some cases, that might be a sufficiently robust virtual ground. But for products where a split supply is available or readily possible, like the AMB B22, three channels just doesn’t make any sense except possibly as a band aid if the B22 has other design problems.


TECH SECTION: For the geeks, and engineers, here’s more supporting information.

SHARED DISTORTION: A 3 channel or virtual ground design generally shares the critical active ground reference between the two stereo channels. This means any distortion or non-linearities created in the virtual ground by one channel will end up affecting the other channel. Because a virtual ground has much higher output impedance and greater non-linearity than a real ground there’s going to be a lot more undesirable interaction between the channels. That’s exactly what I observed in the AMB Mini3 . Below is the spectrum from the left channel driven at 1 Khz to 1 volt (well below clipping). In this first spectrum, the left channel has the virtual ground all to itself. Note the normal distortion products only at harmonics of 1 Khz (2 Khz, 3 Khz, etc.):

AMB X-Audio Mini3 THD N 1 Volt RMS 15 Ohms One Channel Driven

DISTORTION FOREST: Without changing the left channel, the right channel is also driven to the same 1 volt level but at 300 hz. Below is the same output from the left channel but look at the new “forest” of distortion products! The largest new spike is at 300 hz and represents crosstalk. The rest are due to the complex interaction of both channels with the non-linearities of the virtual ground. For anyone wondering, the difference between the 1 Khz tone above, and the one below, is plainly audible. AMB claims the OPA690 virtual ground can handle 190 mA of current. Despite being under that current level, the OPA690 is doing a very questionable, and audibly poor, job here:

AMB X-Audio Mini3 THD N 1 Khz Left 300 hz Right 1 Volt RMS 15 Ohms (ref 1 V)

SHARED CROSSTALK: With 100 mOhms impedance for the ground channel, 1 volt output, and a 15 ohm load as above, the left channel will induce somewhere around 9.4 mV of signal onto the virtual ground. This is only –40 dB below the output signal. With a real 1 mOhm copper ground, however, the math changes to 94 uV and –80 dB. The real ground does much better at isolating the channels—about 40 dB better. Some might be wondering why the 300 hz spike above isn’t closer to –40 dB. There are multiple answers. First, I don’t know the actual output impedance of the OPA690 in the Mini3. I used 100 mOhms as a fair and typical number for the example calculations. Second,  the two sine waves were out of sync with each other and alternately cancel and reinforce each other via the shared ground amp in frankly scary looking ways. Every spectrum sweep was different. And, finally, the feedback in the AD8397’s left channel may see some of the 300 hz crosstalk through the load as an error signal and be partially correcting for it (i.e. the left channel actually produces its own 300 hz signal that’s out of phase with the distortion product—another scary thought). But, regardless, the real world distortion and crosstalk result is pretty bad and plainly audible.

AN EXPERIMENT (added 5/18): The above measurements were from the Mini3 which uses a different active ground from the output amplifiers. I wondered what would happen if I directly compared a conventional ground to an active ground using the same amplifier. This would come closer to simulating the M3 and Beta22. I don’t have any 3 channel amps, but with the floating inputs on the dScope, it’s easy to use a 2 channel amp and just ground the input to one channel. The result is more like the B22 in the 4 channel “balanced” configuration as there’s no shared ground. A 3 channel design would perform much worse as shown above for the Mini3 due to the added intermodulation distortion. It’s worth noting the amp below is operating Class A/B (the B22 is Class-A) so it’s creating all those nasty power supply currents active grounds are supposed to clean up. See the diagram below under Band Aid Solution for the configurtion.

THD vs FREQUENCY: Here’s the THD vs frequency at 2 volts output into 150 ohms. The yellow trace is one channel conventionally grounded. The blue trace is connecting the same load across the left and right outputs and grounding the input to one channel. This amp uses the TI TPA6120 output buffer which is capable of very low distortion. You can see at 1 Khz the active ground configuration has nearly 3 times the distortion and at 20 hz it’s 0.0015% vs 0.009% which is about 6 times more. Even in active ground configuration this isn’t really enough distortion to worry about but it’s worth noting the active ground does indeed make the performance significantly worse:

TPA6120 Amp THD Freq Sweep Conventional Gnd (yellow) vs Active Ground (blue)

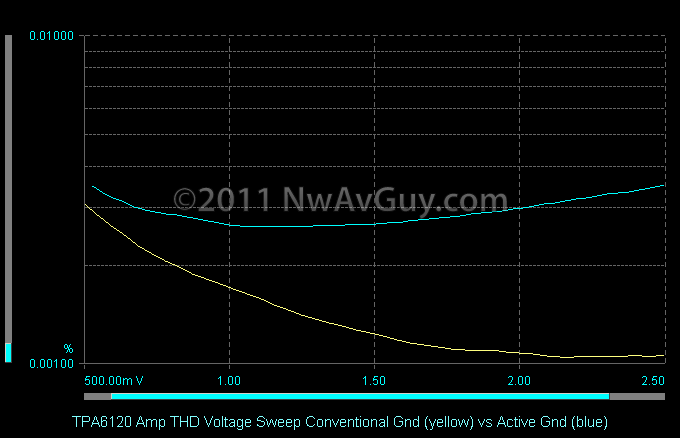

THD vs OUTPUT: Here’s the THD at 1 Khz plotted versus output voltage into 150 ohms. Again, you can see substantially higher distortion at all output levels with the active ground configuration, but again, it’s plenty low for both versions. The Beta22 might perform very differently but the idea was to test the generic concept:

TPA6120 Amp THD Voltage Sweep Conventional Gnd (yellow) vs Active Gnd (blue)

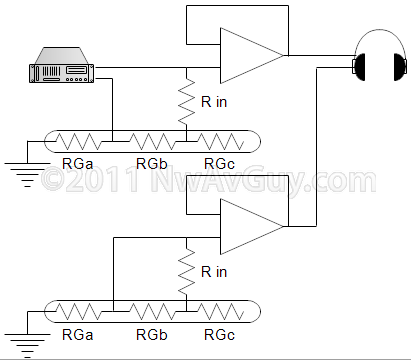

DIGGING DEEPER UNDER THE GROUNDS: I mentioned earlier a virtual ground might help performance of amplifiers with an improper ground scheme. So here’s one of many examples of what can happen if you get sloppy with ground paths or don’t understand proper grounding:

nwavguy shared ground path

WHEN GROUND ISN’T GROUND: The “RG” resistors in the diagram above represent impedance in a single ground trace or area of “fill” as used on the Mini3’s PC board. It’s one continuous section of copper, but in reality, there’s an impedance between any two points on the copper due to resistance and parasitic inductance (I could have more accurately used “Z” instead of “R”). In this case the relatively high ground “return” currents from the headphones are going to show up as a signal across RGa and RGb as shown by the red arrows. This is a problem because the input ground connections (blue and green) are also tied across those impedances—so you end up with multiple ground signals superimposed on each other across RGb and RGa. If you have two stereo channels sharing even part of the above ground trace it’s easy to see how one channel’s output ground currents will could show up in the other channel’s input circuitry creating crosstalk. This is just one relatively simple example. There are other places, like the power supply filter capacitors, where the output signal can create ground currents that have to be carefully considered. Even decoupling cap grounds require careful treatment.

ELEGANT SOLUTION: If you understand what’s causing the problem above, the solution is obvious. The widely accepted practice of a “star ground” (versus random shapes of copper “fill” on a PCB) provides independent paths for each of the ground signals. In reality this means 3 traces (and/or wires) instead of sharing one. They all converge at the true reference ground point of the amplifier. Now each ground signal has its own private path to ground. It’s like having a house with 3 kids and each now has their own bathroom instead of having to share a single bathroom—conflict (and crosstalk) resolved:

nwavguy private star ground

nwavguy active ground channelBAND AID SOLUTION: If the above is too simple, not enough for the marketing department to work with, or you don’t know how to route grounds, you can devise a much more elaborate solution. You can add a whole amplifier to do nothing more than act as a ground. Now the input grounds of the amps driving the headphones are blissfully free of those output ground currents, but, as we’ve seen, this expensive band aid comes with some rather severe side effects. I’d find a new doctor who can treat the root cause rather than merely covering it up. Using a proper star ground is a much cleaner, cheaper, and better performing solution.

POWER SUPPLY NOISE & RIPPLE: I’ve also read third channels are justified because they disturb the power supply less. It’s another example of a grain of truth being applied wrong. A conventionally grounded Class A/B amplifier alternates its current consumption between the positive and negative power supplies. This “back and forth” can create variations on the supplies. It’s easy to produce scary looking (sometimes highly unrealistic) simulations of this effect and some have been posted in forums. With an active ground, or for that matter a bridged amplifier, the load on the power supply is more consistent creating less variation and that’s the “sell” and justification for the third channel. But first of all, the variations are proportional to the output current of the amplifier and the value of the filter capacitors in the power supply. This means with the low currents involved in a headphone amp, and large capacitors, this effect is already close to nil. Douglas Self calls it Induction Distortion and talks about how to reduce it to below the threshold of measurement just by using proper layout, grounding, etc. And this is in amplifiers with currents perhaps 100 times greater than a headphone amp. So if it can be reduced below the threshold of measurement in conventionally grounded big power amps, it’s a very safe bet it’s a non-problem in headphone amps.

CMRR: The Common Mode Rejection Ratio of an amplifier is its ability to reject (ignore) precisely the sort of power supply noise that allegedly justifies a ground channel. The CMRR of the AD8397 op amp in the Mini3 is quite good. I don’t know about the CMRR of AMB’s M3 or Beta-22 amps. But if it’s poor, that problem should be addressed rather than using a ground channel, with all its negative side effects, as a band aid.

CLASS-A (added 5/18): A true Class-A headphone amp neatly gets rid of the power supply problems completely. If the B22 really is fully Class-A as AMB claims, it’s not subject to these problems which removes this part of the argument for a 3rd channel.

pro amp

POWER SUPPLY IMPEDANCE (added 5/18): As further justification for 3 channel designs, at least one designer has said “the real ground on a conventional amplifier is the midpoint between the power supply's capacitors whose internal impedance also contribute to the overall ground impedance.” He goes on to explain the Effective Series Resistance (ESR) of the power supply capacitors can be higher than the output impedance of his amplifier channels. Therefore, he argues, an active ground can outperform a real ground. But this is not true because of how NFB works and the amp’s CMRR. Any voltage developed across the capacitors due to their ESR is almost entirely compensated for by the NFB and CMRR (common mode rejection). This essentially lowers the effective impedance of the power supply caps so low as to be relatively insignificant. See the next paragraph.

NFB’s ROLE (added 5/18): The way most amplifiers lower their output impedance, including all of AMB’s designs, is with negative feedback (NFB). Generally the more NFB, the lower the output impedance. NFB constantly compares the input of the amp to the output and corrects any differences. So if we ground the input and output signals at the star ground, the NFB in even a single channel amp will make sure the output follows the input—even if that ground point is “moving around” due to ground currents, capacitor ESR, etc. Everything is relative to that single point. Any errors related to the ESR in the power supply capacitors looks like common mode noise to the amplifier and is rejected. This is the same mechanism allowing AMB’s ground channel to maintain ground even when the supply rails are “moving around”. The power supply capacitors are only referenced to the supply rails and ground. Any signal/noise/ripple across the capacitors is a common mode signal that’s rejected even in 2 channel amplifiers with a proper star ground scheme.  See CMRR above.

THE BLAMELESS AMPLIFIER (added 5/18): Douglas Self has an excellent book The Audio Power Amplifier Design Handbook. Not only does he spend several pages talking about PCB layout and the finer points of proper grounding, but he also extensively digs into just about every measurable imperfection you can accuse an amplifier of right down to plated steel output jacks causing magnetic non-linearities. And he doesn’t just talk about it in theory, he builds his designs and measures them with an Audio Precision analyzer. He measures distortion, crosstalk, output impedance, noise, and more. And he ultimately came up with “the blameless class A amplifier” which, he argues, is close enough to perfect to be entirely transparent. Its distortions of any kind are so low they’re difficult to even measure. And, guess what, it has only 2 channels and uses a conventional star ground. All the supposed evils AMB and others are trying to solve with active grounds, are missing in action in Self’s designs. And if you don’t like Self, Bob Cordell has done much the same thing with much the same result. And if you don’t like either of them, there’s Bruno Putzleys and others. It’s really clear the issues the 3 channel guys are trying to solve, have been solved by others in MUCH more elegant ways.

ANOTHER ARGUMENT: Because virtual grounds are used in certain high power pro-sound amps, some claim that validates their use in headphone amps. But the main criteria for these ultra-high power amps is efficiency—not ultimate sound quality. They need to be small (for their massive power ratings), light, and not trip circuit breakers when you have big racks filled with them. As mentioned above, an active ground smooths out the load on the power supply. This makes it possible to use a smaller and lighter power supply that works more efficiently with the AC line. Bridged amps have similar benefits but they have a hard time with low impedance loads and cannot have any of their speaker terminals grounded. Back in the 70’s Crown came up with their Grounded Bridge topology which is a type of active ground. It’s a way to increase power supply efficiency while still retaining low impedance drive capability and ground referenced outputs.

tractorWHAT’S GOOD FOR… damping tube vibration must be good for damping transistors… and what’s good for a 2000 watt pro-sound power amp must be good for a headphone amp…. Uh, No. It’s like “Wow these giant tractor tires work great out in the corn fields so I bet they’ll give my sports car lots more traction and it will handle better!” Yes I’m being sarcastic, but when you look at some of these designs and the claims being made, the analogy fits surprisingly well. It’s just that tractor tires are more intuitive than behind-the-scenes audio engineering. Just because something works well in a 2000 watt professional power amp doesn’t mean it’s needed, or even desirable, in a 0.2 watt headphone amp. Sports cars don’t plow fields.

SINGLE SUPPLY WOES: So what if you’re stuck with a single power supply? Here’s my take:

  • Consider A True Dual Supply – It’s all about priorities. If sound quality and performance is the number one priority, consider doing whatever is necessary to use a proper split supply with a real ground. This might mean two batteries in a portable device or something more than a single voltage DC wall transformer for a home device. This is the cleanest, most efficient, and very likely best performing, solution. For battery devices, however, see Dual Battery Concerns below.
  • Create A True Dual Supply With a Real Ground – There are many ways to create a split bipolar supply from a single supply. You can use a DC-DC converter with a bipolar output or two DC-DC converters. You can also use just one DC-DC converter, or a charge pump, and create just the negative rail from the positive source and use the “raw” supply as the positive rail.  Even the little $20 FiiO E5 amp uses a charge pump to generate a negative supply in this way and it works quite well. The downside is these converters create noise and waste around 10% of the power they produce. But, with proper design, the noise should not affect performance within the audio band and the FiiO amps easily beat the Mini3 for battery life. High current active grounds are typically even more power hungry and waste even more power as heat.
  • Use a “Dual Mono” Bridged Amp – Bridged (some call them “balanced”) amps offer an interesting solution when you have only a single power supply. The two amps, with no signal, are quiescent at half the power supply voltage so the load sees zero net volts. As you apply signal they both move, in opposite directions, away from the center point. The advantage over a virtual shared ground is each channel is completely independent. Plus you get roughly double the output swing and up to four times the power. And, like a virtual ground, the “return” current from the load is handled by the supply rails rather than the amp’s ground paths. Bridged amps also create less power supply disturbance. But the negatives are significant. See Bridged Amps in the first section.  And, perhaps worst of all, bridged amps require a 4 wire headphone connection.
  • Use Coupling Capacitors – This is often frowned on but it does have its advantages. It’s cheap, simple, efficient, noise-free, offers the best battery life, doesn’t limit current, and provides inherent DC protection for expensive headphones. A lot of very well regarded OTL tube amps use output capacitors and have their fans. The downsides are increased low frequency roll-off, phase shift and distortion. And there might be “pops” during power up/down. To provide some perspective, the distortion of a good output cap will generally be lower than the distortion created by an active ground. So, if an output cap might be offensive to audiophiles, an active ground should be even more offensive.
  • Use A Virtual Ground – The Mini3’s virtual ground does an OK job when higher impedance loads are used and the current demands are minimal. But it really falls down in some areas as discussed in this article. See the next paragraph for some additional ideas on improving virtual grounds.

A BETTER VIRTUAL GROUND: Based on what I measured with the Mini3, testing another virtual ground design, and some further thought, I can offer the following ideas:

  • 3X Current Capability – A shared virtual ground should have at least at least triple the maximum combined current expected from the load. The Mini3 didn’t follow this rule and it shows clearly in the measurements. AMB rates the Mini3 at 300 mW per channel into 33 ohms. That’s 135 mA per channel of peak current or 270 mA total. The TI OPA690 virtual ground, however, is only rated for 160 mA “min” and 190 mA “typical”. Based on my measurements the OPA690 is already unhappy at 160 mA of peak current and falls on its face if you try to go higher. This is likely partly because the OPA690 isn’t even designed for audio use—it’s a video/data op amp where distortion isn’t a big issue. And op amps are typically not specified for this sort of application. So I think it’s good to be conservative in specifying a virtual ground. For the Mini3 that would be 800+ mA peak current capability. Such a device would likely have higher quiescent current and further hurt battery life. It’s an ugly compromise which is yet another reason I don’t favor virtual grounds for headphone amps.
  • Dual Mono Design – If your single power supply voltage offers plenty of voltage swing then dual active grounds (versus bridging) might make sense. Essentially you have 2 mono amplifiers, each with its own virtual ground. This neatly eliminates the nasty crosstalk, “double current burden”, and highly audible shared non-harmonic distortion. It does, however, increase size, cost and power consumption. This is similar to the four channel version of the AMB B22 but the B22 already has a dual supply and real ground so it’s clearly better off with just 2 channels—not 3 or 4. This doesn’t require a 4 wire connection but might be tricky with a 3 wire output due to differences in offset voltage between the virtual grounds.
  • Input Ground Isolation (updated 5/15) – The Mini3 isolates the input grounds from the output ground. This might, intuitively seem like a good solution to some, but in reality it degrades the CMRR and NFB of the audio amps because the output ground is no longer referenced to the input ground. The whole purpose of NFB is to make the output look as much like the input as possible. But, by splitting the grounds, you literally insert all the non-linearities and flaws of the virtual ground into the output of the amplifier. Ground isolation can also cause cause DC offset and/or stability problems. Any phase shift between the two grounds under load could degrade stability. And at ultrasonic or RF frequencies there very likely will be some phase shift. Grounding of power supply decoupling and filtering capacitors may also become a problem—which ground do you use?. If you have to use a virtual ground, it is a much better idea to use a conventional star ground with it and not isolate the input and output grounds in the misguided attempt to avoid “ground pollution”.

DUAL BATTERY CONCERNS: The Tangent website implies dual battery designs are a dangerous choice due to DC risks: What happens if one of the batteries dies before the other or becomes disconnected? It’s likely not pretty. Here are my thoughts:

  • Single Battery Designs Are Not Immune - Even a single battery headphone amp using a virtual ground may well deliver lots of DC when the battery drops sufficiently low. Op amps can only maintain their DC operating point down to a certain power supply voltage. Below that threshold they tend to do ugly things. So this problem is far from unique to dual battery designs. It may also apply to many virtual ground designs.
  • Use A Protection Circuit – If you’re worried about DC there are really only two options. You can AC couple the output (using capacitors or transformers) introducing non-linearities. Or you can use a protection circuit that’s fast enough to save the headphones if there’s a problem. Such circuits are commonplace in audio power amps and should be in more headphone amps. How much did those nice cans cost?
  • Use A Battery Management IC – If you’re just worried about dying batteries, a battery management IC may solve the problem and handle charging functions. Most have a low voltage shut down feature to disconnect the load when the battery drops below a certain point.

PRIORITIES: It all comes back to what I said earlier about choosing your priorities. If the best audio performance is the number one goal, it seems like bad engineering to seriously compromise the design with a virtual ground. The charge pump generated negative supply in the $20 FiiO E5, for example, works surprisingly well and arguably much better than the virtual ground in the far more expensive Mini3. It adds some ultrasonic noise, but that’s minor compared to the virtual ground problems in the MIni3. And amps with real grounds and proper symmetrical bipolar power supplies work even better.

FINAL THOUGHTS: To me, it’s obvious a conventional 2 channel amp with a true split power supply and real star ground is the best path to headphone nirvana. For single supply applications the right virtual ground used in conjunction with a single star ground, might be a reasonable compromise—not an isolated ground using a video op-amp third channel as in the Mini3. If you’re OK with a 4-wire output, that opens the door for some additional options. I may be publishing more reviews of virtual ground devices in the future. But do check out the Cmoy amp review for an example of how even a dirt cheap, dirt simple, real ground amp with a $0.50 op amp can outperform a much more elaborate 3 channel design like the Mini3.

37 comments:

  1. Well done! Thanks for this explanation as I have wondered myself about the whole 3 channel thing. Stuff like this makes me wonder what other crappy designs are being passed off as better? I'll be following your blog and sharing links as this stuff is obviously not well understood by even a lot of diy guys. Keep rockin the boat!

    ReplyDelete
  2. Thanks for the above comment, and whoever has been sending anonymous comments pointing out my typos, thank you as well. I fixed the errors you found and welcome your corrections.

    ReplyDelete
  3. If you could add a section in your reviews thoroughly detailing (either in pictures or schematically) how you have set up your measurements with the dScope (e.g. analyzer settings, how you set up the load, connectors used, etc.) that would be helpful to readers interested in reproducing your results. Your page on measurement methods doesn't appear to comprehensively cover this, nor do your reviews, unless I overlooked something. While one could probably infer as to how you've set things up, having this information ensures there is no ambiguity.

    Thanks for running this blog. It has been interesting to read.

    ReplyDelete
  4. Thanks. That's a fair request and deserves its own article. I have a few "measurements" articles that I've been working on but they haven't coalesced into anything worthy of publishing yet. In the meantime, there is a lot of information on the Prism Sound Website regarding how the dScope hardware and software work. They have application notes, diagrams, screenshots, the entire user manual, etc. Unlike say RMAA, or other soundcard-based DIY measurements, it's all very well documented. But I still need to publish more about the specifics of my tests and will. Thanks again.

    ReplyDelete
  5. Good post, but do keep in mind that most folks that use headphone amplifiers do so with headphones with much higher impedance. Most product flagship headphones are 600 Ohm impedance and are somewhat difficult to drive from an iPod or laptop.

    In fact your blog post here goes into much more detail:
    http://nwavguy.blogspot.com/2011/02/headphone-amp-impedance.html

    Would you consider running the same tests with a 600 Ohm load and would you expect similar results given that the current requirements are much less?

    ReplyDelete
  6. Thanks Anon, I typically do "spot checks" at other impedances to see how a particular device behaves. Usually the performance doesn't change much above 150 ohms so that works well as my "high" impedance. I did a few tests on the Mini3 at 330 ohms and 600 ohms and noted the output voltage and distortion barely changed from 150 ohms.

    There was a big difference between 15 and 150 ohms with the Mini3. A portable amp is much more likely to be used with portable headphones. And most portable headphones are 16 - 32 ohms. So 15 ohms is a representative load.

    There are some 600 ohm headphones but they're relatively rare. The more popular high-end models, like the Sennheiser HD5xx HD6xx and flagship HD800's, are all in the 60 - 300 ohm range. The AKG K701's and Sony V6's are 62 ohms. Audeze LCD-2 are 50 ohms. Etc. Beyer makes a few 600 ohm models but most (all?) of those are also available with more normal impedances in the 80-250 range.

    And, as I said in the review, the Mini3 doesn't really have enough voltage to drive high impedance low efficiency headphones. It's marginal, for example, with the very popular HD600's or several of the Beyer models. Many argue you need at least 100 mW into 250+ ohms to properly drive those headphones. That's about 5 times more than the Mini3 can manage.

    ReplyDelete
  7. I understand evaluating crosstalk performance, particularly when a design is advertised as providing superior crosstalk performance. Even RMAA does crosstalk measurements.

    But I'm wondering how important it is in general. The article says that the sounds coming out of each channel may be harmonically unrelated. In many cases though, they should be harmonically related (though not identical), unless you have voices that are hard panned to left or right, correct? Is the problem the crosstalk itself or the issues or that crosstalk is a symptom or cause of other problems?

    What are your thoughts about intentional crossfeed filters, through either hardware or software? There's an argument there that music is mastered for playback on stereo speakers, so when listening on headphones, the channel balance needs to be adjusted to compensate. I have not read much on it, but my limited understanding is that those algorithms account for the "filtering" the human head does on sounds in one direction towards the other side's ear. So this is not really the same effect as bad crosstalk would give. But how different would it be?

    ReplyDelete
  8. The psycho-acoustics of distortion in the left channel related to music in the right channel is likely complex. But I think it's safe to say it can't be a good thing. You only have to look at the substantial "forest" of distortion products created by even just one pure tone in each channel to see there's a lot of undesirable interaction going on. With all the complexities of real music, that interaction is going to be even more significant. These are the kinds of things amplifier designers try to avoid not create.

    The issue of how much channel separation you need with headphones is open to debate. On the one hand you have people re-wiring their headphones with 4 wire cables and connectors to remove really small levels of crosstalk and claiming audible benefits. On the other hand you can make a case the acoustic separation is, by far, the limiting factor. Personally I think the difference between -60 dB and -80 dB is probably insignificant. But -40 dB is a plainly audible level, so it's harder to dismiss.

    But, regardless of which side of the above debate you're on, it's highly misleading for anyone to claim adding a 3rd channel reduces crosstalk when it's much more likely to increase it--especially on an amplifier that's well designed to begin with.

    The crossfeed issue is more complex as it's usually not just pure broadband crosstalk. Some people like the effect, and some don't. I certainly wouldn't want it built into a headphone amp's inherent design with no way to turn it off.

    Finally, as for RMAA, please see my RMAA article. It's prone to all sorts of problems. It has no concept of absolute levels, only relative levels, so that makes it very difficult to trust a lot of RMAA results.

    ReplyDelete
  9. I can't stand listening to most headphones for very long without some sort of crossfeed. I only ever turn it off If I'm listened to something that's already HRTF-ed through another filter (like for movies and stuff) or the rare binaural recording.

    ReplyDelete
  10. Are 3 channel designs always bad in this sort of application or can they be "done right"?

    I ask because I was awaiting the next of Jan Meier's desktop amps and he seems quite fond of 3 channel designs. The reason I'm interested is that he's one of the few people to put crossfeed circuits in his amps and uses digital volume controls on them as well.

    ReplyDelete
  11. Maverickronin, Do you mean like the Meier Corda Swing? It says "star ground" in the description and I don't see anything about a third channel. It looks like a great conventional 2 channel amp to me using the same BUF634 outputs as my Benchmark DAC1. If you have a link to his 3 channel design(s) I'd love to see the details?

    ReplyDelete
  12. The Swing is just 2 channels.

    His last 3 channel design, the Concerto, is sold out and discontinued but he's said he's going to have a similar but improved design available in a few months.

    Here's his page on the Concerto.

    http://www.meier-audio.homepage.t-online.de/concerto.htm

    It isn't linked from anywhere on his site since he's sold out, but Google still turns it up.

    6moons has some pictures of the internals as well as some quotes from Dr Meier about the reasoning behind his design.

    http://www.6moons.com/audioreviews/meier3/meier.html

    I know they're pretty loony, but I don't think they've stooped to the level of fabricating quotes and photoshoping pictures. Tell me if I'm wrong about that though.

    ReplyDelete
  13. Thanks for the links. To be honest, it's really not clear to me what's going on. He shows a diagram with scope-like signals with a common ground wire and indeed some of his text talks about a common ground signal. This implies 3 wires and a special "fabricated" ground signal. But he interchangeably talks about 4 wires as well. And with 4 wires there's no need to fabricate anything.

    It appears he's adding a signal to both channels just for the purpose of creating a ground signal. To me that's like pouring dirt in your gas tank to give your gas filter something to do. It's similar to how stereo works on a vinyl LP--the left and right information is mixed together when the album is cut and phase information is used to separate it back out on again on playback. The result is rather miserable stereo separation (by modern standards at least).

    His output channel diagram looks like a conventional bridged amp--which would indeed have the (questionable) benefits he claims--and require 4 total amplifiers (not 3) and a 4 wire headphone connection. And, indeed, he shows 4 wires in his "field" diagrams.

    Does the Concerto only work with 4 wire headphone connections? If so that's a huge limitation for a lot of people but that would explain a lot.

    In any event, his claim of a true "balanced signal" going over 3 wires isn't possible that I can see. 4 wires yes, 3 wires no.

    To answer your original question, "can virtual grounds be done right", I believe they cause more problems than they solve with a 3 wire headphone amp. Put another way, the money you spend on trying to do a third channel "right" would be much better spent improving a 2 channel design. So far I still haven't seen anything that contradicts that unless you're stuck with a single power supply voltage--which is not an issue with home gear like Meier is offering.

    The Concerto appears to be something different but I still don't see where fabricating "false" signals and mixing them into the audio is a step towards greater accuracy. Again, it seems like a solution looking for a problem rather than the other way around.

    ReplyDelete
  14. I couldn't make heads or tails of his description either but I just assumed it was over my head. My knowledge of electronics is mostly summed up with with water pressure analogies.

    Also, the Concerto just uses a standard 1/4" TRS jack so there can only be 3 conductors.

    Maybe I'm just going to have to find a good way to do crossfeed in software at a system wide level so its not dependent on plug-ins in the player software.

    ReplyDelete
  15. Some notes. You said:

    "The more popular high-end models, like the Sennheiser HD5xx HD6xx and flagship HD800's, are all in the 60 - 300 ohm range."

    You do realize these aren't static loads at all right? HD6XX and HD800 definitely hit 500+ ohm loads in the bass (Head-Room measurements test impedance over 20hz-20khz). The HD800 goes over 600 ohms in frequencies.

    "It's marginal, for example, with the very popular HD600's or several of the Beyer models. Many argue you need at least 100 mW into 250+ ohms to properly drive those headphones. That's about 5 times more than the Mini3 can manage."

    If you're a mythbuster you should know this claim is pretty tripe too. The first milliwatt should produce the majority of the sound (97dB @ 1mw for the HD600 claims Sennheiser). It shouldn't be out of the question getting over 100dB out of say 10 or so.

    The question I have is why did you run your tests specifically out of AMB's suggested loads (33-330)? It's worth noting AMB's measurements vary DRASTICALLY from yours:

    http://www.amb.org/audio/mini3/rmaa_mini3_hp_33.html

    However, he measured with a 33ohm load using RMAA. Could it be your 15ohm load causing potential anomalies?

    ReplyDelete
  16. Shike, yes I realize about the loads. I show impedance plots in my February Impedance article. The peaks you talk about are over a fairly limited section of the audio range. I was referring to the rated impedance.

    I did some testing into 33 ohms and 330 ohms--the values used by AMB. See the start of the tech section of my Mini3 review. Even into 33 ohms the Mini3 had significant problems. Into 150 ohms it was much better.

    I ran the rest of the tests at 15 and 150 ohms as those are the values I use across the board. That way anyone can fairly compare say the Mini3 to the E7, etc. The majority of portable headphones are 16 ohms so it's important to test at a similarly low impedance--especially for portable products like the Mini3.

    100 mW has some basis in fact as a "generous rule of thumb" for high impedance power hungry cans but I agree I should be more specific. The greatest challenge is wide dynamic range music--say cleanly reproducing classical music with the peaks hitting live levels. For the HD600's, 2+ volts RMS should be enough for the needs of most (especially those not into hearing damage) and the Mini3 can manage that. But there are less efficient headphones that need significantly more power including, I'm told, some of the Beyers.

    ReplyDelete
  17. Quote from above: "Even into 33 ohms the Mini3 had significant problems."

    I have a Mini3 and I use it with a 32 ohm Grado and it sounds great! I don't know what problems you are having with it but it seems like you're the only one who have this kind of experience. I also read your post in the AMB thread by the way and you can't seem to state your credentials. I couldn't even find it here either.

    In addition from your Mini3 review, I quote: "FiiO E5 outperforms the Mini3 in several areas."

    The only thing that the E5 out performs the Mini3 is the battery life. Li-On for the E5 vs. Ni-MH for the Mini3 (20 hrs vs. 10 hrs respectively). I know because I own both and sold my E5 after I got my Mini3. The sound quality of the Mini3 is way better than the E5 -- it's night and day apart, IMHO.

    I would also like to add that my Mini3 runs for 10 hours on average using a 280mah 9v Ni-MH battery. If I listen at low volume (9 o'clock knob position on the Mini3), I get at least 12 hours straight. So your review of the Mini3 is not entirely correct. This is just one of the many statements that you claim in the review are wrong.

    ReplyDelete
  18. Anon, your comments are more applicable to the Mini3 review, not this article. But here's my response:

    I'm not disputing subjective sound quality as that's basically impossible. If you think your Mini3 sounds great, and better than the E5, that's fine. People think sonic bricks make their DACs sound better too.

    My reviews are 95% about objective measurements and that's where the Mini3 falls on its face compared to the objective data AMB publishes. And, as I show in the review, the Mini3 is also inferior to the E5 in several measurements.

    It's not possible to get "12 hours" battery life from the high performance version of the Mini3--even using AMB's own numbers and a 280 mAH battery. That's like getting 1.5 liters of water out of a 1 liter bottle. I link to a battery datasheet in my review, and the real number is in the range of 4 - 7 hours.

    As for my "credentials" that's the great part about objective measurements. It's easy to verify my numbers, look at the math involved, etc. The Mini3, for example, either puts out something close to the 300 mW AMB claims, or it doesn't. Either I'm wrong or AMB is wrong. So far, nobody has shown where I'm wrong.

    Wine critics may need solid credentials to write subjective reviews, but engineers just have to publish data others can readily verify. And, as I've said many times, I encourage others to verify my numbers.

    When someone points out I made a mistake I'm happy to correct it and have done so. That's more than I can say for the erroneous numbers on the AMB site. Rather than correct several obvious errors, it seems Ti Kan would rather shoot the messenger.

    ReplyDelete
  19. NwAvGuy, Thank you for sharing your point of view on the virtual ground design. I enjoyed it very much. However you are going to have a tuff time convincing non technical music lovers about a shortcomings of the AMB design unless you present at least one of your own. Your design would have to measure better and make sure it sounds good too (your point is that better measurements should lead to a better SQ, right?). Think this way: if you claim that you know better how to design a good quality headphone amp then show it, otherwise people would not take you seriously. You probably did not plan for that, but now looks like you have no choice. An engineer myself I wish you can win this battle...

    ReplyDelete
  20. Nwavguy thanks for this great article. The 3 channel BS has never made any sense to me and its great to see someone spell out what I have suspected all along. Don't worry too much about your critics. It's not often anyone challenges their nonsense so their reaction is understandable. I hope you'll do more articles like this one.

    ReplyDelete
  21. ReformedKoolaidHolicMay 17, 2011 at 12:59 PM

    Nice try but GOOD LUCK with your naive quest. Others have tried before you to dare dispute the religious and their devout beliefs. While your argument might be more factual and pursuasive you are still far outnumbered by those who drink the magic koolaid and BELIEVE!

    About power supply noise you said "What’s left is like a drop in the ocean" and that's what objective numbers are to esoteric audiophools. If they deem the earth is flat, the sky is green, and Obama is a Muslim, you best believe them or suffer their wrath! Ti Kan is clearly BLESSED so how dare you challenge his twisted word of law!

    Never forget there is safety in numbers. In this case its the of number of IDIOTS but good luck trying to pursuade them with trivial FACTS. You obviously don't understand facts are prohibited from their religion.

    ReplyDelete
  22. Indeed, your posts are appreciated. I'm sure you will meet some resistance, as well you writing is sometimes very categorical, but DIYs like me will surely appreciate your great contributions.

    ReplyDelete
  23. Thanks again for your post. Just one question: AMB claims that Beta22 3rd channel's output impedance is less than the ground one (by taking into account power supply caps, the post is on AMB's forum).

    What do you think of that? It is right?

    Assuming that output impedance would be better with 3 channels, could we consider that kind of designs worthwhile?

    ReplyDelete
  24. User "amb" (aka Ti Kan) on AMB's own forum June 28th, 2010 said:

    "having two amplifiers drive the headphones (per channel, in balanced mode) doubles its effective output impedance"

    If Mr Kan doesn't delete it, you can find his quote here:

    http://www.amb.org/forum/beta22-amplifier-f12/benchmark-engineer-on-balanced-v-unbalanced-headphone-amps-t326.html

    If he does delete it, I have a screenshot and you can e-mail me if you want some proof.

    It's an interesting quote because 3 channels also uses "2 amplifiers to drive the load" and "doubles its effective output impedance" as Mr Kan admits in the quote above.

    Mr Kan needs to get his story straight, because on the AMB website under the Beta22 Tech Highlights he boldly says two amplifiers in a 3 channel design somehow:

    "results in lower output impedance"

    And he also says that about his other 3 channel designs like the M3 and Mini3. As far as I know "lower" and "double" are not the same thing. So, which is it Mr Kan? Double the impedance? Or Lower impedance? I'll save everyone the suspense... he's right in his obscure forum post where he's answering to a real engineer and wrong in the much more public product website pages where he has his marketing hat on and is describing his 3 channel designs.

    I explain in the article above how a conventional ground in a 2 channel amplifier has an impedance around 0.001 ohms while using another amplifier as a ground, as in the 3 channel Beta22, has an impedance closer to 0.101 ohms or about 100 times greater. So that means something like:

    2 Channel Beta22 Output Impedance = 0.1 Ohms
    3 Channel Beta22 Output Impedance = 0.2 Ohms

    And it's much worse than just output impedance. The 3 channel version also greatly increases distortion and introduces entirely new kinds of distortion that are likely far more audible than in the 2 channel version of the Beta22. Please see the article above for more details.

    In summary, do I consider the 3 channel version "worthwhile"? No I don't. It's a big step backwards from the 2 channel version.

    ReplyDelete
  25. I honestly stop taking your blog seriously after you claimed that the FiiO E5 is better than the Mini^3. If your ears cannot differentiate between these two amplifiers, then you have no business reviewing audio gears.

    ReplyDelete
  26. The main focus of this blog is to provide an alternative to typical subjective reviews performed by ear. So I would never say the E5 sounds better or worse than the Mini3 as that would only be to me, with my headphones, playing my music, etc. There's no shortage of those reviews.

    So instead I make very similar measurements to those Stereophile publishes and objectively evaluate how a piece of gear alters the sound. If you don't believe measurements are useful, this isn't the blog for you.

    The FiiO E5 is much happier than the Mini3 with typical 16 ohm portable headphones. The E5 has less high frequency distortion, and perhaps most important, it doesn't create an entirely new kind of audible distortion related to the Mini3's shared virtual ground. It would be interesting to compare them in a blind test.

    I also received a follow up regarding the previous output impedance comment and moved my reply to the main article. Please see Power Supply Impedance.

    At the same time I updated the article with some new measurements comparing an active ground vs conventional ground in a way that's similar to comparing the 4 channel "balanced" Beta22 to the 2 channel version. The distortion of the active ground configuration was significantly higher. Please See An Experiment in the Tech Section.

    ReplyDelete
  27. I've also tried to answer some of the more general questions in a new article about subjective vs objective measurements.

    ReplyDelete
  28. Good article that addresses some of the very same points I'd been wondering about at some point.

    JFTR, the headphone amp section in the Sansa Clip/Fuze (AS3514 and related implementations, e.g. in AS3525, AS3543, some PP502x) uses a virtual ground setup. Surprised me a bit, since IIRC the old STMP35xx had a charge pump to generate a negative supply.

    ReplyDelete
  29. What is your agenda? Why attack the good/great sounding equipment, when there is a lot of shoddy equipment out there? Even if you personally don't like the 3 channel topology, it sounds good in most cases. Who cares if good/great sounding equipment doesn't test well. I'm not looking for that. I'm enjoying what I'm hearing. Your graphs would look more impressive with the truly shoddy equipment displayed. Right? Go for the bottom 1/2 of what is produced when attacking and that would be a "real" service to the community.

    ReplyDelete
  30. To Anonymous above, I've tried to make my "agenda" fairly clear. Please see my first article: Introduction

    I'm not trying to "attack" anything or anyone. I'm only offering mostly objective information for those interested. That includes providing measurements where none exist, verifying published measurements, verifying objective claims, and exploring audiophile myths in general.

    If someone prefers to buy (or build) their gear based on mainly subjective opinions, that's fine, they can ignore this blog. But there's a void for those curious about the objective side. I'm trying to help fill that void.

    As I explained in the Mini3 review, I believe DIYers especially deserve as complete and accurate of information as possible when choosing to build someone else's design. Unlike a commercial product, they can't just return it if they don't like it. Many invest hundreds of hours in a single project.

    If the claimed benefits of 3 channel designs don't exist, or are themselves based on myths, I believe that's very useful information for someone deciding, for example, to build a 2 or 3 channel amplifier.

    As for which equipment I choose to test, there's no particular agenda. I test things as I get them--either for myself or on loan from others. I'm not sure what you mean by "bottom 1/2" but I'm already testing lower-end reasonably priced gear--like the $20 FiiO E5 and $30 Behringer DAC.

    As for "Who cares if good/great sounding equipment doesn't test well", the "great sound" is very often imagined. If you don't care about testing, this isn't the blog for you. I try to explain the two schools of thought in my Subjective vs Objective article.

    ReplyDelete
  31. ReformedKoolaidHolic said...
    "Nice try but GOOD LUCK with your naive quest. Others have tried before you to dare dispute the religious and their devout beliefs."

    This is true. I wouldn't count on changing the audiophile landscape by much. However, this is fun for those of us who are on this side of the fence. And if we happen to get a few on the other side to come over, then great!

    I think a few people misinterpret what you are doing here. One person accused you of "going after" certain companies. I may be wrong, but it seems to me that you chose the gear you chose because of their affordability and their popularity. Since you aren't getting any free samples (yet), the first part is understandable. As for the second part, who wants to read a review of something only a few people have? I'd rather read about either something I have owned, heard myself, or plan on buying.

    Somewhat OT, but I wouldn't mind reading a bit more about your subjective impressions as well. Numbers are great and that's what you're good at. But I'd like to know what they mean in reality. If you're comparing DACs, you have an excellent benchmark (pun intended) to compare to. And pretty soon you will have heard enough amps to make references. I don't want or expect a review- just a small paragraph. You can even put a HUGE disclaimer that these are ONLY your impressions! ;-)

    ReplyDelete
  32. mikeK thanks for your comments. I've been wanting to offer more subjective impressions but I think they're often only valuable under blind conditions. In the future look for some simple informal blind tests with myself and/or someone else. I also would like to conduct some more rigorous blind tests but it's hard to find willing listeners with public credibility.

    I've learned it's difficult to trust regular sighted listening when evaluating the subjective side of amps, DACs, etc. Too often differences you think are obvious really don't exist. Or they're so subtle you have to focus every eardrum nerve ending under just the right conditions to even detect them.

    As discussed in the Subjective vs Objective article the numbers tell only part of the story. I agree more subjective impressions would be useful but subjective listening is far more useful when blind.

    ReplyDelete
  33. I couldn't agree with you more about the blind testing. And I realize that it actually takes quite a bit of effort and a lot of time to do it properly. However, there was a thread on Head-Fi where a user (milosz) did /somewhat/ controlled blind tests on amplifiers with a big clear disclaimer upfront about the limitations of the tests; and it turned out to be a HUGELY popular thread that garnered a lot of praise and appreciation with very little if any criticism of his methods. I do realize that for this blog the allure is the objective information and you would have to be very careful not to get off of that path or be seen as hypocritical. However, I think most who read this understand that blind testing, while still dependent on human variables, is still scientific and FAR more objective than any other method used to evaluate things- which is why it's the benchmark of pretty much all fields of evaluation... except of course ours. =(

    ReplyDelete
  34. Thanks mikeK, I agree completely. It's too bad Head-Fi has banned any discussion of blind testing except in the hardly visited Science forum.

    ReplyDelete
  35. I have been linking to here from head-fi whenever I have the chance. So far I haven't seen any of those posts go into the memory hole.

    Here's hoping some of it rubs off...

    ReplyDelete
  36. Ughh. I am totally ripping every TLE2426 out of every amp I have made that requires two batteries. I knew that it wasn't right just reading the data sheet. Time to make some sonic inprovements

    ReplyDelete
  37. "Just because something works well in a 2000 watt professional power amp doesn’t mean it’s needed, or even desirable, in a 0.2 watt headphone amp. Sports cars don’t plow fields" HEHEHE, brilliant analogy :D However I would like to have a 100V 50A PSU and some kind of disco/PA multi kW amp everywere, and preferably I would channel it all into my HEAD-MOUNTED 2500W SPEAKERS!! :D YEAH! beautiful? NO, brutal? YES! shake my head of please

    I know I know, I`m an idiot and so on and so forth, but some of us want it LOUD, so if anybody knows a portable amp that will drive a DJ headset @ 2-3Watt let. me. know. ;) ;)

    McFrosk

    sstn_@hotmail.com

    ReplyDelete

PLEASE NOTE! If you see "LOAD MORE..." OR "LOADING..." just above this paragraph, you need to click that link to load the newest comments. It may take several seconds. When all the comments are displayed the Load More/Loading link disappears.

COMMENT APPROVAL: Comments may take anywhere from a few minutes to a few days to be approved. You might want to save a copy (highlight Ctrl-C) of your comments before submitting in case something goes wrong. The approval process is necessary to prevent obscenity, etc. Please keep comments on topic. Comments promoting commercial interests will not be approved and may be reported as SPAM.
