UCA202 DAC Take 2

behringer uca202 testINTRO: The Behringer UCA202 was the first USB DAC I reviewed on this blog back in February. It sells for around $30 and has been around for many years. I’ve revised several of my tests and I was curious to see how it compares, apples-to-apples, with more modern inexpensive USB DACs like the Turtle Beach Micro II. I only tested the line outputs in this review as the original review established the headphone output has some serious problems—most notably a very high output impedance.

BEHRINGER UCA202: The UCA202 is larger than most newer inexpensive USB DACs (many of which are about the size of a USB thumb drive). The UCA202 is about the size of a deck of cards and has a fairly long (1 meter) attached USB cable. Like the Micro II it has an optical digital TOSLINK output. Unlike most newer inexpensive USB DACs, it also has a volume control but it only affects the headphone output. It has RCA line outputs and inputs.

uca202 modesWINDOWS INSTALLATION: The UCA202 installed smoothly in both XP and Windows 7 without needing any drivers. Windows reported it as a “USB Audio CODEC”. Three sample rates are available 32, 44 and 48 Khz all at 16 bits as shown to the right in Windows 7.

SUBJECTIVE SOUND QUALITY: Running the UCA202’s line outputs into my 02 headphone amp the sound quality was good with no obvious problems. There was some hiss audible at high gain settings on the amp but at realistic volume/gain settings it was reasonably quiet. Someday I plan to do an ABX blind comparison between the UCA202 and other DACs using the O2 amp.

MEASUREMENT SUMMARY: The overall results are substantially better than the Micro II and mostly quite good for a $29 DAC. The UCA202’s weak areas are noise and low level linearity (and the poor headphone output). To save space and leave room for more columns in future reviews, I’ve replaced my previous “Excellent”, “Very Good”, etc. ratings with a letter grade from A to F where A is excellent and F is Fail (unacceptable).

Measurement UCA202 TB Micro II FiiO E7
Freq. Resp. 10K +/- 0.1 dB A +/- 1.0 dB B +/- 0.5 dB A
Freq. Resp. 33 ohms N/A +/- 1.8 dB C +/- 0.5 dB A
HP Output Imp 47 Ohms D 0.95 ohms A 0.13 ohms A
Max Output 10K 1.12 Vrms B 1.34 Vrms B 1.87 Vrms B
Max Output 33 Ohms N/A 1.26 V 52 mW B 1.4 V 59 mW B
THD+N 0 dBFS 10K 0.008% A 0.14% C 0.05% B
THD+N 100hz 10K 0.007% A 0.025% B 0.007% A
THD+N 1Khz 10K 0.007% A 0.02% B 0.007% A
THD+N 1Khz 33ohms N/A 0.12% D 0.015% B
THD+N 10Khz 10K 0.009% A 0.11% C 0.007% A
IMD CCIF 10K 0.005% A 0.028% D 0.027% C
IMD SMPTE 10K 0.002% A 0.02% B 0.008% B
Noise A-Wtd -88.8 dBu C -93.8 dBu C -98.7 dBu B
-90 dBFS Linearity 3.8 dB C 0.8 dB A 0.0 dB A
USB Jitter Jtest Very Good B Poor D Very Good B


  • Low distortion even at high frequencies.
  • Flat frequency response
  • Relatively low jitter
  • RCA Line Outputs
  • RCA Line Inputs can be used for recording


  • Poor headphone output
  • Just over 1 volt RMS maximum output (typical of USB powered DACs)
  • Higher than average noise
  • Marginal low level linearity
  • Flimsy plastic construction

BOTTOM LINE: So far the UCA202 is still the best low cost USB DAC I’ve tested if you don’t use it to drive headphones. I’ll be testing other low cost DACs in the coming weeks to see how they compare. The UCA202 isn’t as small as some newer USB DACs but it’s still relatively portable.



TECH INFO: The UCA202 uses the ubiquitous TI PCM2902 integrated USB DAC chip. It’s an old design, but as you’ll see, it easily outperforms the much newer C-Media chip in the similarly priced Turtle Beach Micro II when using the line output. In this case, newer isn't better.

LINE OUT ONLY: I only tested the line outputs as the previous UCA202 review established the 47 ohm headphone output impedance renders it a poor choice for most headphones. Unlike other headphone DACs I’ve tested, you won’t see headphone loads being used in the tests below. All tests were run with a 10K load unless otherwise specified. Please see the original UCA202 review for tests of the headphone output.

FREQUENCY RESPONSE: The frequency response with a 10K load (such as a headphone amp) via the line outputs was substantially better than the TB Micro II. It’s within 0.4 dB from 10 hz to 20 Khz. There are no significant issues here:

UCA202 Frequency Response 10K (blue) vs Micro II (yellow) -3 dBFS -3 dBu 16-44


THD+N vs OUTPUT: This test starts at 10 mV where noise dominates the measurement. Despite having higher noise than the Micro II, the UCA202 distortion drops much quicker implying it has much less quantization distortion at low levels. Because the UCA202 is likely to be used at line levels with an external amp the distortion will be around 0.01% or even less at typical levels. It has slightly less maximum output (about 1.1 Vrms) compared to the Micro II but much lower overall distortion. The Redbook standard for digital home gear is 2 V rms. But USB powered DACs usually produce around 1 – 1.5 Vrms:

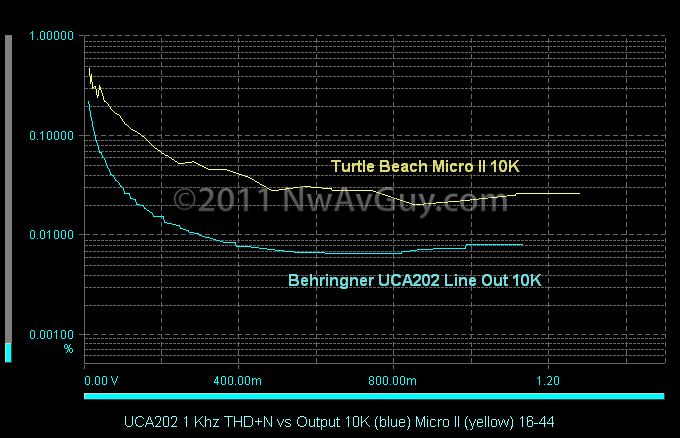

UCA202 1 Khz THD N vs Output 10K (blue) Micro II (yellow) 16-44


THD+N 100 hz 0 dBFS: With the PC volume at maximum, and a 0 dBFS input, the UCA202 produces about 1.1 Vrms at very low distortion. This is excellent performance with all harmonics below the magic –80 dB threshold. Way out of band you can see a spike at the 44 Khz sampling frequency which is fairly normal—especially in low cost DACs. The odd bump in the noise floor above 20 Khz is related to intentional noise shaping in the PCM2902 DAC. It’s an intentional design technique to lower noise within the audio band:

UCA202 Max Output THD N 100 hz 100K THD BW=22 Khz


THD+N vs FREQUENCY: Here’s the THD+Noise plotted from 20 hz to 20 Khz into 10K (blue) at 775 mV (0 dBu). The Micro II is shown, for comparison, in yellow. The input is –3 dBFS to prevent any digital overload of the DAC. The UCA202 does much better here staying below the ideal 0.01% threshold until about 11 Khz. This is very good performance for a wideband test:

UCA202 THD vs Freq 10K (blue) Micro II (yellow) ~0 dBu 16-44

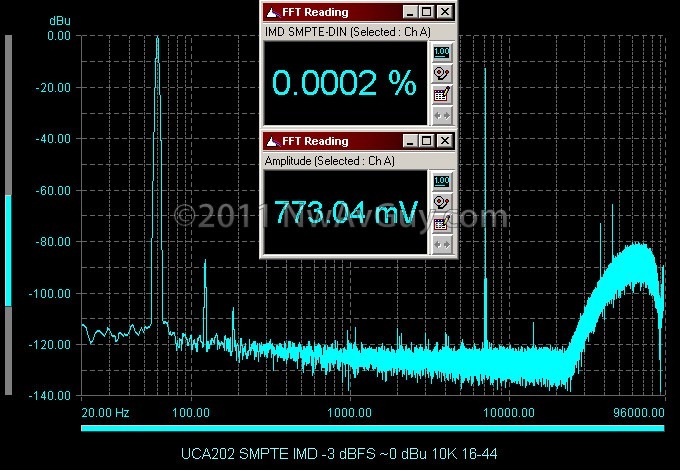

SMPTE IMD: This an excellent result with essentially no IMD products and everything well below –80 dB. In comparison, the Micro II had 170 times more distortion on this test:UCA202 SMPTE IMD -3 dBFS ~0 dBu 10K 16-44


CCIF IMD 44 Khz: The UCA202 does extremely well here for an inexpensive DAC with more than 50 times less distortion than the Micro II at the same level into the same 10K load. More important, all distortion products in the audio band are well below –80 dB. The two spikes around 25 Khz are a little alarming but only your dog might hear them. See the Micro II review CCIF section for both it’s very poor performance on this test and the DAC1’s reference plot. This is excellent for any reasonably priced DAC running at 16/44:

UCA202 CCIF IMD -7 dBFS ~0 dBu 10K Ohms 16-44


CCIF IMD 48 Khz: The UCA202 also does well, although slightly worse, at 48 Khz:

UCA202 CCIF IMD -7 dBFS ~0 dBu 10K Ohms 16-48


NOISE & LINEARITY: The UCA202 is only average for noise and worse than average for linearity. A –90 dBFS signal is reproduced at –93.8 dB for an error of 3.8 dB. There’s less than 1 dB of error at –80 dBFS so the problem is limited to extremely low levels. Noise referenced to my old 400 mV dBr reference would be 83.1 dB and against full output it’s 91.8 dB both A-Weighted. The good news is the noise will be upstream of the volume control if an external amp like the O2 is used and the PC volume is set to maximum. That means you’ll get around 90 dB of real world S/N ratio which is sufficiently quiet. But if you plan to use the PC’s volume control, the noise and/or linearity might be an issue in some circumstances. The spikes at 2, 3, 4 and 5 Khz are likely quantization distortion of the 1 khz low level signal and are relatively typical. I don’t know what’s responsible for the spike at 30 hz but it’s very inaudible.

UCA202 -90 dB noise linearity ref 0 dBu


JITTER: Here’s the spectrum from the dScope’s J-Test for jitter. The two things to look for are the number and level of symmetrical sidebands and the “spread” at the base of the 11025 hz signal. Compare the result below to the Micro II’s Jitter to see how much better the UCA202 does. This is a very respectable result for an inexpensive USB DAC and the frequency accuracy (clock accuracy) is very good as shown by the frequency reading on the left:

UCA202 Jitter 11025 hz J-Test 10K ref ~0 dBu 16-44


TECH COMMENTS: Used to drive an amp, powered speakers, or other source with a line input, the TI PCM2902 based UCA202 blows away the Turtle Beach Micro II based on the C-Media CM102. The only weak areas are the noise and linearity below –80 dBFS. But neither of those is likely to be an issue if you leave the PC volume all the way up and use the volume control on the amp/speakers.

October 12, 2011

Turtle Beach Micro II

tb micro ii benchINTRO: This is the first in a series of inexpensive portable USB DAC reviews I’ll be publishing in the next week or two. The idea is to test the DACs with a high impedance load (such as the O2 Headphone Amp) and a typical headphone load. The DACs are all small, easily portable, and USB powered. The $25 Turtle Beach Audio Advantage Micro II is just such a DAC. According to Turtle Beach, it’s supposed to provide “higher quality sound” compared to internal PC audio. I also have updated how I test and present DAC results.

TURTLE BEACH MICRO II: The Micro II is a small “dongle” with an attached 2 inch “pigtail” USB cable. It has a single 3.5mm jack which serves as line out, headphone out, and an optical digital out (using a supplied 3.5mm-to-Toslink adapter). There’s no volume control, other controls, or inputs of any kind--just a blue LED.

tb micro ii modesWINDOWS INSTALLATION: The Micro II installed smoothly in both XP and Windows 7 without needing any drivers. Windows reported it as a “USB Sound Device”.  The only sample rates and bit depths available are 16/44 and 16/48 as shown to the right in Windows 7.

SUBJECTIVE SOUND QUALITY: There was moderate hiss with my Ultimate Ears IEMs but the Micro II was fairly quiet with less sensitive headphones. The sound quality, however, was seriously odd. Playing familiar well recorded audiophile tracks the Micro II made them sound shrill, glaring, and harsh regardless of what headphones I used. I was really curious to measure the Micro II and find out why it sounded so obviously bad.

POOR DRIVER DESIGN (updated): I first checked the Micro II’s frequency response and it was reasonably flat out to 15 Khz so the poor sound was still a mystery. Then I checked the 1 Khz THD and while it wasn’t great it also wasn’t bad enough to explain the poor sound quality. When I dropped the level to see if the distortion would drop, I found the problem. The Micro II was displaying a horrible linearity problem. Dropping the input from 0 dBFS to –20 dBFS should drop the output by 20 dB as well. But it only drops 8 dB! That’s a massive 12 dB error. The net effect is the Micro II was heavily compressing music—making softer sounds much louder than they should be.

BAD SOUND EXPLAINED: It turns out, as described in the comments to this article, the C-Media CM102 integrated USB sound chip apparently used in the Micro II has a “feature” called Dynamic Range Control (DRC) that defaults to on. Confusingly, there’s an advanced option in the Windows 7 sound options for the Micro II simply labeled “Loudness”. And, worse, it’s enabled by default. You have to uncheck the box to stop the Micro II from heavily compressing anything you play through it.

DRC vs LOUDNESS: The Turtle Beach choice of calling the C-Media’s DRC option “Loudness” is very misleading. In audio, Loudness Compensation involves changing the frequency response at low listening levels to compensate for human hearing. It’s generally based on the Fletcher-Munson Equal Loudness Curves. In this case, however, it has nothing to do with changing the frequency response—only the overall dynamic range. I don’t know what Turtle Beach’s driver calls this feature as it’s an unsigned driver so I didn’t install it on my test bench PC that runs the dScope software. The whole idea is to not need proprietary drivers.

WHAT WERE THEY THINKING (updated)? The “loudness wars” are already out of control without any further help from Turtle Beach. A lot of pop music has a peak to average volume difference of only around 8 – 12 dB as the labels keep compressing music ever further in an effort to have it stand out as being louder. The last thing pop music needs is another approximately 12 da lot more compression but that’s exactly what you get, by default, with the Micro II. For anyone unaware of the option, or who knowingly leaves it on, the Micro II is likely to sound significantly worse than the internal audio of just about any computer its plugged into.

MEASUREMENT SUMMARY: The overall results, even with DRC disabled, are not terribly impressive. The high frequency distortion, in particular, is poor. Here are the results compared to the more expensive FiiO E7 (some tests were run slightly differently but I’ve tried to adjust for that in the E7 numbers):

Measurement TB Micro II Fiio E7
Frequency Response 20hz-15Khz 33 ohms +/- 1.8 dB Fair +/- 0.1 dB Excellent
THD 0 dBFS USB 10K 0.20% Fair 0.05% Good
THD 1 Khz 10K Ohms -3 dBFS 0.022% Good 0.03% Good
THD 1 Khz 33 Ohms -3 dBFS 0.12% Fair 0.03% Good
IMD CCIF USB 0.28% Poor 0.03% Good
IMD SMPTE  0.03% Fair 0.008% Excellent
Noise A-Weighted -93.8 dBu Fair -96.7 dBu Good
Max Output 33 Ohms Vrms/mW 1.26v 52mW Good 57 mW Good
Max Output 10K Ohms Vrms 1.34v Good 1.4v Good
Output Impedance 100hz 0.95 Ohms 0.13 Ohms Excellent
Jitter USB 16/44 Jtest Fair Very Good

BOTTOM LINE: In my opinion the “Loudness” feature enabled by default is an epic fail. Someone either got sloppy or they have very odd priorities for a “high quality” USB DAC. Putting that aside, the rest of the performance of the Micro II still isn’t very impressive. The next several reviews of low priced USB DACs will help put the Micro II’s performance in perspective.



FREQUENCY RESPONSE: The frequency response with a 10K load (such as a headphone amp) at 16/44 is acceptable but not great. There’s a fraction of a dB of variation below about 30 hz and it’s down –1 dB at about 15 Khz. The steep roll off above 12 Khz is typical of a cheap DAC running at 44 Khz and is due to cost savings in the digital and analog filters. The slight peak around 8 Khz is also disturbing as it indicates either poor DAC filtering and/or potential instability in the headphone amp. Into 33 ohms you can see a slight drop due to the output impedance and a low frequency roll off of about –1.7 dB at 20 hz. That’s borderline audible. Into 16 ohms it would be even worse and more likely to be audible. This indicates less than ideal capacitor coupling in the output:

TB Micro II Frequency Response 100K (blue) & 33 Ohms - 3 dBFS ~400 mV 16-44


THD+N vs OUTPUT: This test starts at 10 mV and the rise at below 250 mV is more likely due to more quantization error than noise. The unweighted noise should be below 0.004% but the distortion is more than ten times higher. The lower blue plot is into 10K and the distortion is around 0.025% which is under the worst case guideline of 0.05%. Into 33 ohms, however, it’s over 0.1%  above about 700 mV which could be audible under some circumstances. In both cases, the maximum output level is around 1.3 Vrms. This works out to 52 mW into 32 ohms, 104 mW into 16 ohms and only 6 mW into 300 ohms:

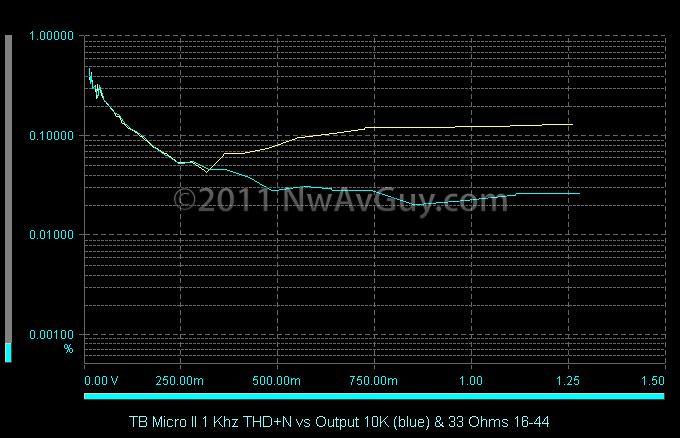

TB Micro II 1 Khz THD N vs Output 10K (blue) & 33 Ohms 16-44
